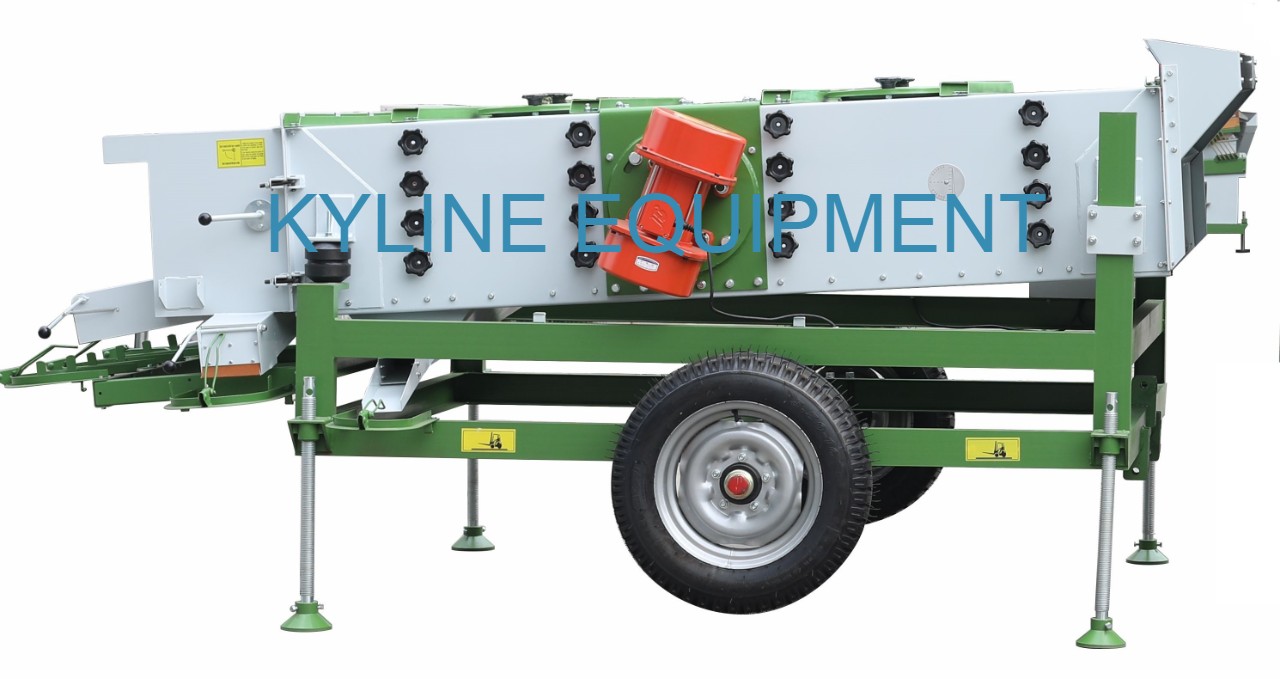

Vibrating grader 5FXJ series
- multi-layer screens. models with three, four or five layers.
- Take out big/small impurities
- Can be used to grade pulses.
- With wheels and can be pulled around in yard
- Very simple design and low maintenance needs
- Come with free screens
- For five layer model, it can be configured as double deck: a metal sheet replace the middle screen to separate the inside of grader two parallel channels. Each channel has three screens and grains run through both channels simultaneously. So the capacity is much higher.
| Name | Model | Layer | Sieve(mm) | Power | Capacity | Weight | LxWxH (mm) |
| (kw) | (t/h) | (Kg) | |||||
| Vibration Grader | 5XFJ-5B | 3 | 1000×2000 | 0.74 | 5 | 860 | 2910x1840x1800 |
| 5XFJ-5C | 4 | 1000×2000 | 0.74 | 5 | 890 | 2910x1840x1800 | |
| 5XFJ-7.5B | 3 | 1250×2400 | 1.5 | 7.5 | 1040 | 3500 x 2050×1880 | |
| 5XFJ-7.5C | 4 | 1250×2400 | 1.5 | 7.5 | 1080 | 3500x2050x1880 | |
| 5XFJ-10B | 3 | 1500×2400 | 1.5 | 10 | 1160 | 3500 x 2300×1880 | |
| 5XFJ-10C | 4 | 1500×2400 | 1.5 | 10 | 1210 | 3500x2300x1880 | |
| 5XFJ-10D | 5 | 1500×2400 | 1.5 | 10 | 1360 | 3550x2300x1740 | |
| 5XFJ-20Y | 5 Double screen box |
1500×2400 | 1.5 | 15-20 | 1360 | 3550x2300x1740 | |
| Longer Vibration Grader | 5XFJ-5BC | 3 | 1000×3000 | 1.1 | 5 | 1020 | 3950x1840x1860 |
| 5XFJ-5CC | 4 | 1000×3000 | 1.1 | 5 | 1100 | 3950x1840x1860 | |
| 5XFJ-7.5BC | 3 | 1250×3600 | 1.5 | 7.5 | 1200 | 4630x2050x2050 | |
| 5XFJ-7.5CC | 4 | 1250×3600 | 1.5 | 7.5 | 1360 | 4630x2050x2050 |
